Definitions and Composition

SPCC (General Purpose Cold-Rolled Carbon Steel Sheet and Strip): Primarily composed of iron, carbon, and minor alloying elements, SPCC is produced through a cold-rolling process. It is equivalent to DC01 and ST12.

SPHC (Steel Plate Hot Commercial): Also known as HOT, SPHC is produced through a hot-rolling process. It primarily consists of iron and carbon and is equivalent to the national standard 08AL.

SECC (Electrolytic Galvanized Steel Sheet): Cold-rolled steel sheet coated with a thin layer of zinc through an electrolytic process. In addition to iron and carbon, it also contains zinc. Common thickness ranges from 0.4 to 3.2 mm.

SGCC (Hot-Dip Galvanized Steel Sheet): Hot-rolled or cold-rolled steel is cleaned, annealed, and then immersed in a molten zinc bath at approximately 460°C to form a zinc coating on the surface. This process results in excellent rust prevention, corrosion resistance, weatherability, and workability.

Production Processes

• SPCC material: Produced through cold-rolling, offering high dimensional accuracy and surface quality.
• SPHC material: Produced through hot-rolling, resulting in a surface oxide layer (mill scale) that provides some protection.
• SECC material: A zinc coating is electroplated onto cold-rolled steel to enhance its rust and corrosion resistance.
• SGCC material: A zinc coating is applied to hot-rolled or cold-rolled steel through hot-dip galvanizing.

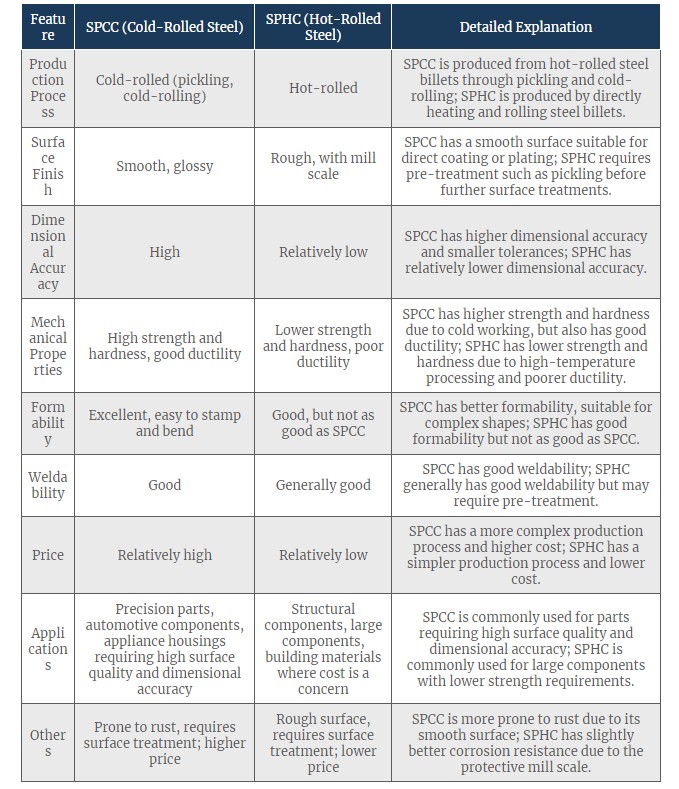

SPCC vs. SPHC

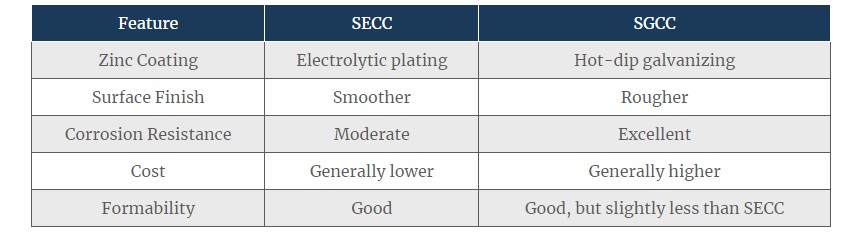

SECC vs. SGCC

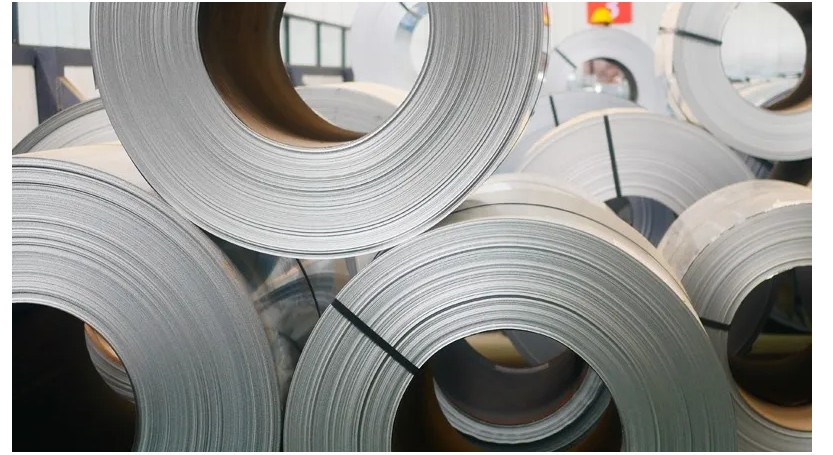

Performance Characteristics Material Images
